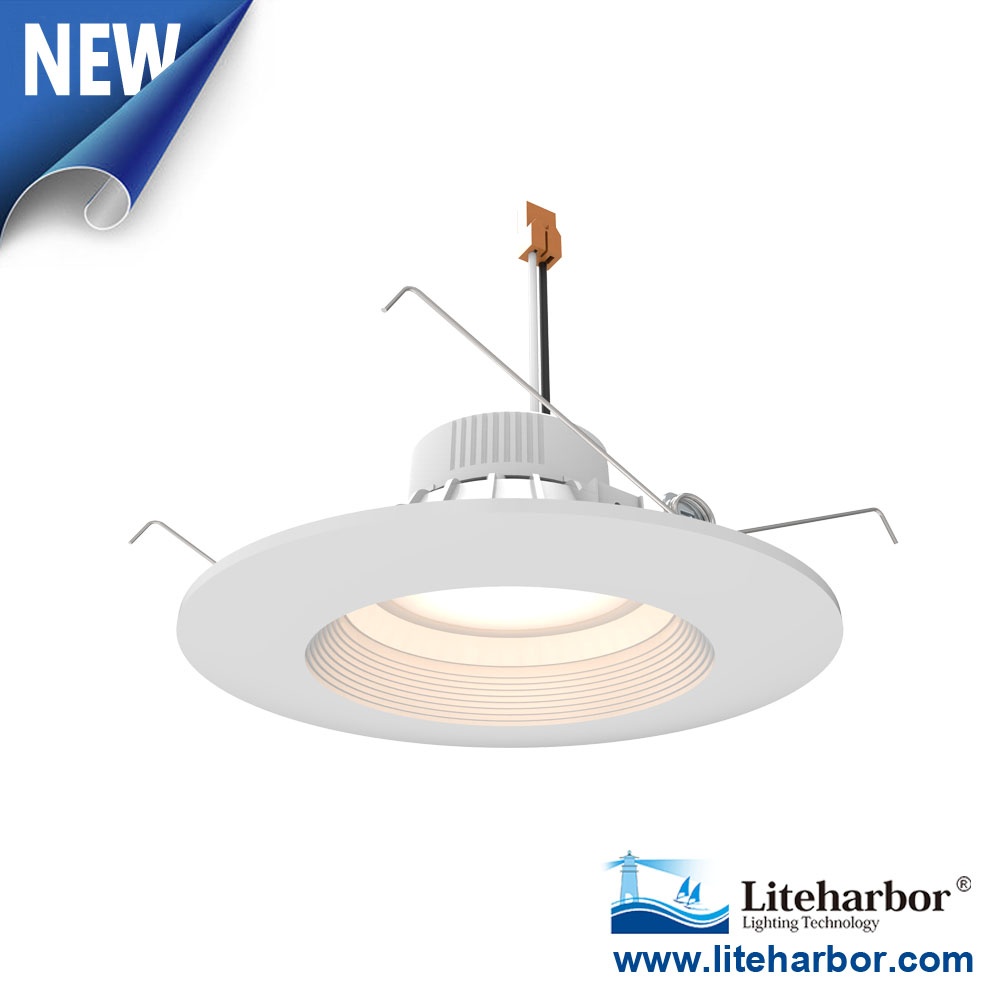

Liteharbor 6 Inch 12W COB Retrofit Downlight
Liteharbor 6 Inch 12W COB Retrofit Downlight2 Liteharbor 6 Inch 12W COB Retrofit Downlight1 Liteharbor 6 Inch 12W COB Retrofit Downlight0

Liteharbor 6 Inch 12W COB Retrofit Downlight

ITEM No.: BL6-001-COB
Liteharbor Size : 6 Inch
Liteharbor Wattage : 12W/14W
Liteharbor Volatge : 110/277/347V
Liteharbor CCT : 2700-4100K

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

Liteharbor 6 Inch 12W/14W COB Retrofit Trim



Description
COB retrofit trim designed to use with Liteharbor 6 inch recessed residential downlight. Using die-casting aluminum casting, good  heat disspation, high transmttance lens and diffusion film, can change the beam angle.





FEATURES
₋ The 12W 5,6-inch universal housing, is a high-performance, easy to install residential-grade downlight, providing a good light output, light uniform and soft, efficient energy-saving.
₋ Using high-quality COB light source and high transmittance lens, high luminous efficiency.
₋ Can choose to use different types of diffusion film to change the beam angle; can change to 10 °, 12 °, 20 °, 30 °, 45 °, 55 °, 60 °.
₋ Use die-casting aluminum casting, good heat dissipation, light modeling simple and beautiful.
₋ Dimmable, dimmer compatibility is good, can match the multi-brand dimmer, dimming effect is good (dimming stable even, no  strobe).
₋ Easy installation time-saving, tool-free, quick terminal installation, with E26 adapter, can be used as E26 porcelain seat LED transformation.



Light Engine

Light source: COB
Material: Die cast aluminum
Input Voltage: AC 120V  277V  347V ±10%
Electric frequency: 50/60Hz
Wattage: 12W/14W
CCT: 2700-4100K
PF: >0.9
CRI: 80+/90+
Dimmable: None/TRIAC

Finish: White/Black/Satin nickel



Listing & Warranty

ETL listed to US and Canadian standards for wet locations
5-Year Limited Warranty.



Packing

Inner Box : 19*9*19.2cm   1PCS/BOX
CTN: 57*39.5*21.5cm   12 PCS/CTN

  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File









    Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

    Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.



    Liteharbor offers a complete product line of Recessed DownlightLED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.



        Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment.     Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made.     Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.     Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
