Features

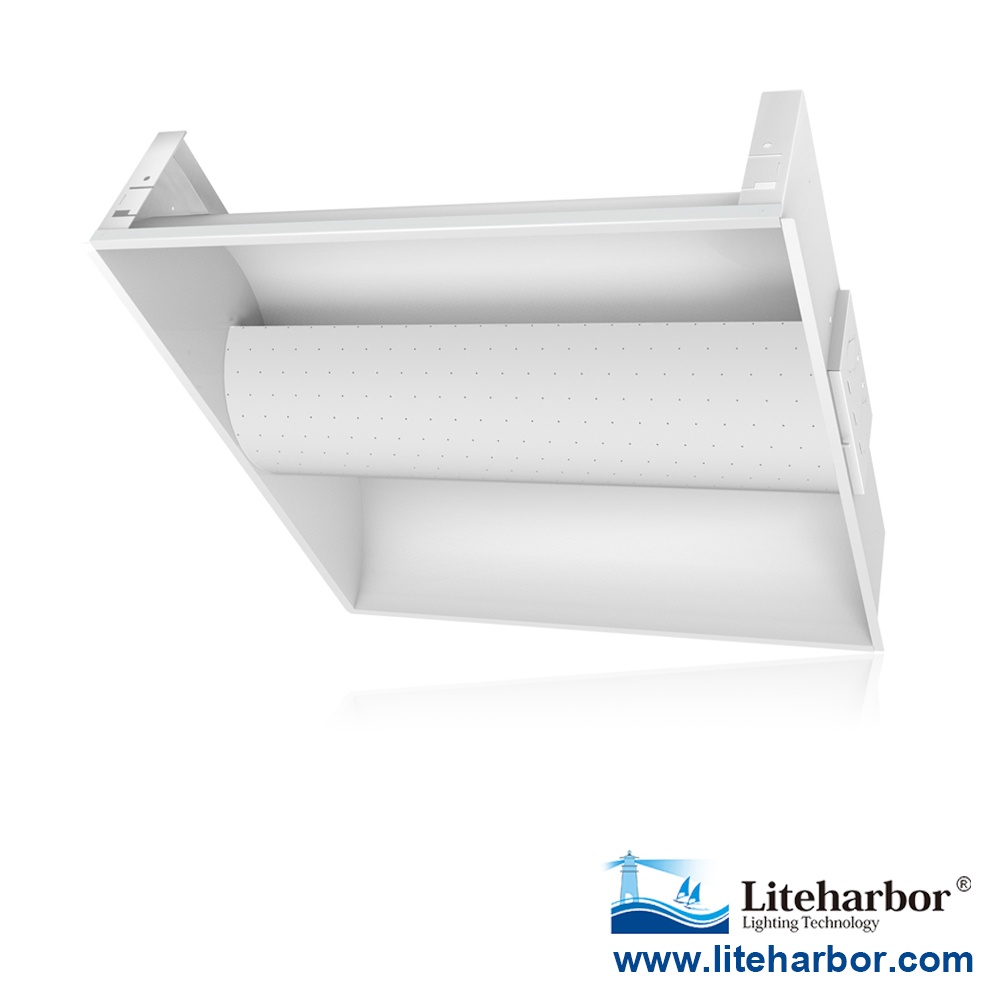

The 2x2 Architectural Basket Series delivers up to 3200 lumens while achieving 100 lumens per watt
Direct/Indirect distribution of soft light creates superior brightness control and balanced light for today's commercial buildings
Available in wide range of color temperatures with 0-10V dimming
No harmful ultraviolet or infrared wavelengths
Contains no lead or mercury
Housing
Cold rolled steel or electro galvanized substrate. Highly reflective white finish on phosphate-free, multi-staged pretreated metal
Air Return has slots above basket
Air Handling has slots along the sides
Mounting
Lightweight and easy to install in any standard T-Bar or screw slot grids. 9/16" Screw Slot option allows fixture trim to hang level with architectural ceiling tiles. Drywall frame available for plaster/drywall ceilings, see accessories. Ideal for new construction and remodel applications
Basket Style
2 basket-style optics are available in Opal Diffuser or White Perforated; fixtures provide indirect, efficient lighting for wide-ranging commercial applications
Reflector
High reflectance white paint provides soft, uniformed indirect light distribution
LED Light Engine
Light engine/reflector system produces 2200 to 3200 lumens while using only 32 watts of energy. 3000K, 3500K, 4100K and
5000K color temperatures. CRI≥80. Easily replaceable array boards allow for easy maintenance or updating technology
LED Driver
Accommodates 120- 277V and 347V input volts AC at 50/60Hz.Power factor>0.9. Dimmable to 10% with 0-10V DC control protocol
Lifespan
Rated for 50,000 hours at 70% lumen maintenance, 8-12 years commercial use expectancy
Listing & Warranty
ETL listed to US and Canadian standards for damp locations
5 years when used in accordance with manufacturing guidelines.
