Description

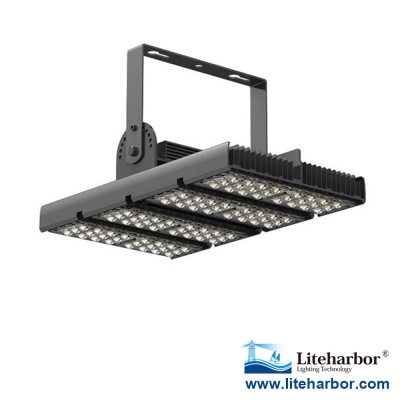

High Luminous 120W Outdoor Epistar / Bridgelux LED Tunnel Light 10200 - 10300LM For Bulletin, Billboard
High Power 120W Outdoor LED Tunnel Lighting, Meanwell Driver, AC85-265V Input, Epistar and Bridgelux
120W Outdoor LED Tunnel Lighting Description:
Adopting 72 PCS of High power LEDs, patent cooling system and high efficiency Waterproof UL approval Meanwell power supply, 120W Outdoor LED Tunnel Lighting is featured with super bright, high efficiency, excellent optic distribution, high optic uniformity, low optic attenuation, excellent appearance and long lifespan. It is widely used in tunnel application.
120W Outdoor LED Tunnel Lighting Features:
High efficiency Waterproof IP65 Meanwell power supply.
High luminous efficiency with 45mil High Power LED Chips
Excellent Heat Dissipation Design to slow down the degradation of LED and keep long lifespan.
Long lifespan 50,000 hours and extremely low maintenance cost.
IP65, suitable for outdoor billboard lighting.
Environment-friendly, Lead-free and Mercury-free, CE and RoHS compliant.
Working area including workshops, exhibition halls, gymnasiums, gas stations, toll stations, etc.
New style, slim and perfect extrinsic feature
Specification
Rated Voltage
AC85-265V 50-60HZ
Total Harmonic Distortion (THD)
≤9%
Power Factor
>0.9
Power Efficiency
>83%
Operation Voltage
DC30-36V
LED Chips
Epistar/Bridgelux
LED Quantity
96 PCS High Power LEDs
LED Power
120W
System Power
129W
LED Efficiency
100LM/W
Light Efficiency
>80%
Uniformity
>0.5
Led Initial Flux
10200-10300LM
Color Temp.
2700-7000K
CRI
>70
Junction Temp.
<80℃
Operation Temp.
-40~+55℃
Storage Temp.
-25~+65℃
Protection class
IP65
Lamp Shell Color
Black
Dimension
298*430*145mm
Waterproof Rating
IP65
Wiring(Default)
Brown->L, Blue->N, Yellow & Green->G
Packing Dimension
52cmx37cmx46cm
Lifespan
>50000H
Warranty
3 Years
Certificate
CE,RoHS
Applications
Bulletin, billboard, Canopy, building wall washing and other general flood lighting.
