Using integration aluminum pipe structure, good appearance, good heat dissipating capacity

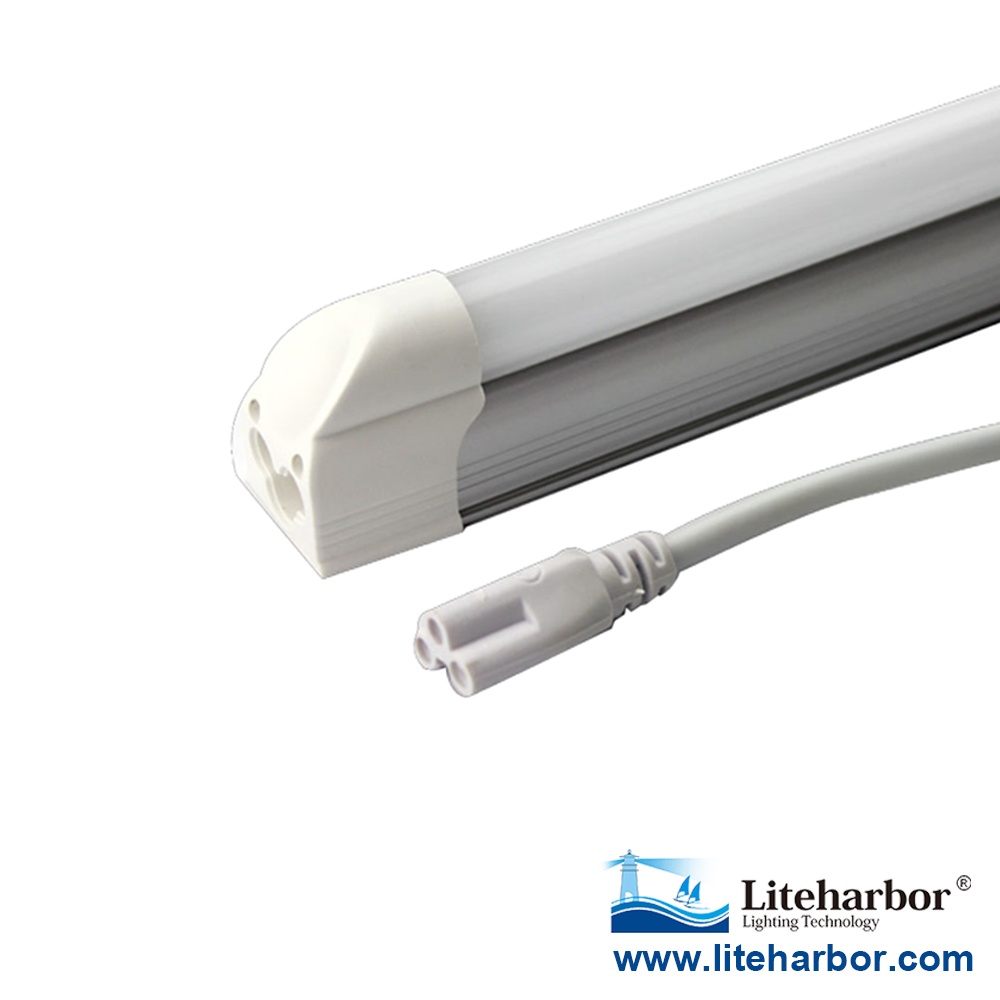

Liteharbor T5 LED Tubes are energy efficient, environmentally friendly
No flicker, start quickly, soft light, protect your eyes
The LED T5 tubes are assembled with SMD 3528, high light efficiency, long life span
Isolated power supply is embedded safely inside the LED tube
Built-in 12VDC/12VAC constant current driver, high efficiency, stability
Linkable connector, easy to install and use
Energy-saving, can save energy more 80% than traditional fluorescent lights
Quick response time, the LED response time is nanosecond
Specification
Fitting
t5
Lumen
235
Wattage
3/4W
CRI
>80%
Voltage
8-16VDC/9-15VAC
Typical efficiency
70 lm/w
Average
50000 hours
New Weight per piece
Color temperature
Diameter
310*28*33.5 mm
warm white
2700K-3000K
LEDs
48pcs
Natural White
4000K-5000K
Dimmable
No
Cool White
5500K-6500K
Warranty
2 years
Life frequency
50-60Hz
Beam Angle
120 degree
Operating Temp.
-20-65 celsius degree
Certificate
rohs ce
Safety Instruction
Cut off the original line power before installation
Led tube lights can be installed directly with 12- VDC or 12VAC power (Higher DC/AC forbidden);
Non-professionals should not disassemble the LED lamp by themselves, including replace of the PC cover
Damage by corrosion will not be honored as materials defect claim. It is the user's responsibility to provide suitable protection against corrosive agents, such as moisture, condensation and other harmful elements.
Pay attention not to exceed the maximum operation temperature 65℃ at Tc point when the modules are used in enclosed environment
Pay attention to standard ESD precautions when installing the module
If there is any unusual problem when using, please contact us. The product couldn't be open optionally, or no warranty for it
