4 Inch Architectural LED Recessed Downlight

ITEM No.： AL4-VA
Input : 120V/ 277V
Housing : Die-formed aluminum
Light source : COB LED
Chip : Cree, Citizen, Epistar all are available
Wattage : 16W-30W

+86-757-8180-8675 Info@liteharbor.com

DOWNLOAD PDF:Spec Data

Product Details
Feedback
CUT SHEET
Company Profile
E-catalogue
Certificates

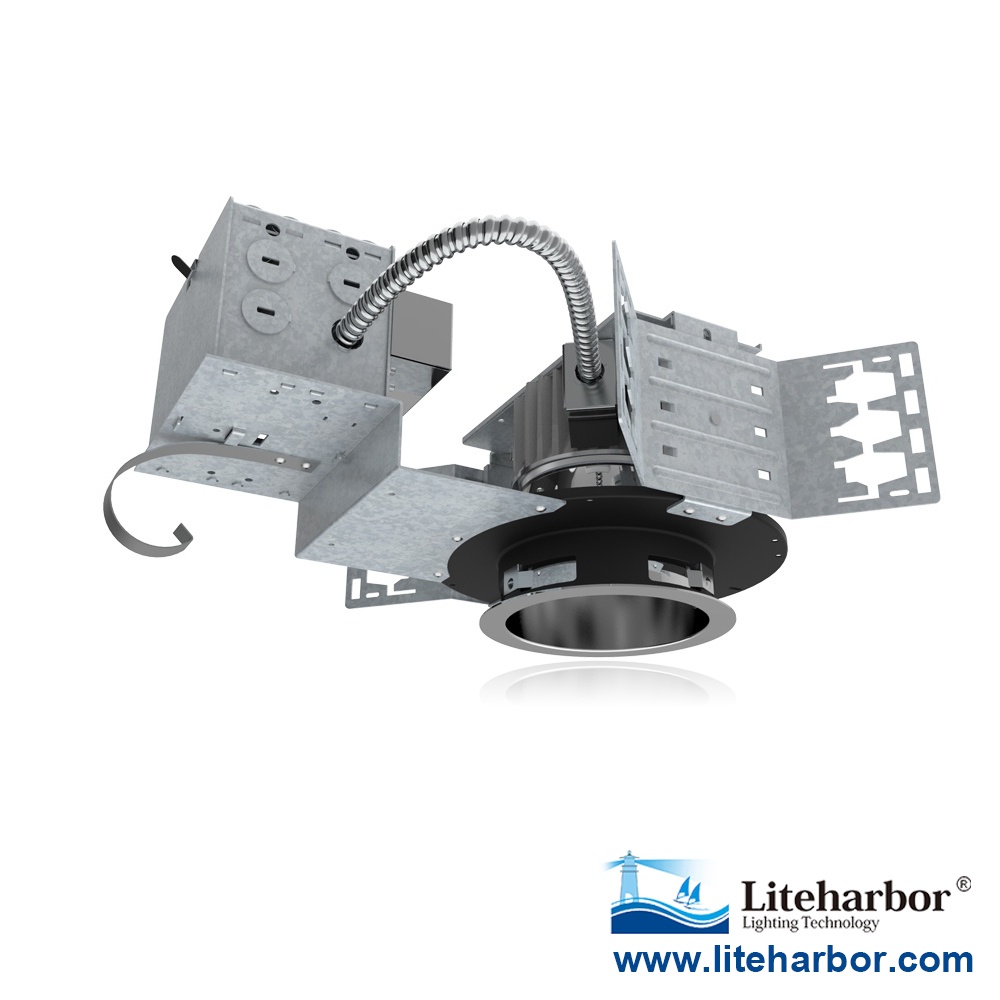

AL4-VA

wholesale lighting fixtures 4 inch architectural

Features

Uniquely Designed for New and Existing Construction

Idea for Places Where Edison Base Sockets Have Been Banned

Environment Friendly no Cd or Hg included

Good Heat Dissipation More Safe to Use than LED Bulbs

High CRI

50000 hours' life time

LED Light Engine is attached to the die-cast heat sink and is easily replaceable and upgradable

Energy Saving

Mounting

Constructed from 16-gauge steel, die-formed construction for max heat dissipation and rust protection

Precision tooled springs secure trim to mounting frame for effortless and tool-less installation frame for effortless and tool-less installation

Compatible with C-channel, flat bar, wood joist bar hanger and EMT

Fully assembled for ease of installation

Non-IC housing require a minimum clearance of 3" around from thermal insulation and 1/2" from combustible material from above the fixture

Junction Box

Pre-wired junction box provided with 1/2" and 3/4" knockouts, romex knockouts with pry-out slots and strain clamps

Provided with removable access plates

All leads are #18AWG wire, the ground wire connected to the bottom and quick connectors are supplied on all leads

Through branch circuit wiring(4 in, 4 out)

Reflector

High quality reflector with 1.2mm thickness available in multiple architectural finishes and types

Gather light scattered by the LED chip and shape it into functional beams that minimize brightness and glare while eliminating lamp image

Transmittance>90%

Optional painted white flange is available

Durability

Die-cast system pulls heat from the LED chip allowing continued cool operation for years

LED output will be maintained at 70% if initial lumens at 50000 hours of operation

Thermal Protection

Standard thermal protection device guards against improper installation and misuse of insulation material

LED Light Engine & Electronic System

120V/277V 50/60Hz input

Less than 20% THD will be produced

Power Factor>90%

Thermally protected for additional safety

Driver is installed on the junction box cover

Driver is installed on the junction box cover easy accessible for service from the ceiling

Class 2 power supply

Over voltage, over current and short circuit protection: Auto recovery

Dims down to 10% with electronic low voltage (ELV) reverse phase control dimmers

CRI>80%

Color Temperature 2700K-6500K

Cree, Citizen, Epistar all are available

Wattage and Lumens for Choices

Input Power	Lumens
30W	2500
24W	1920
16W	1280

DOWNLOAD PDF:Spec Data
DOWNLOAD IES:IES File
