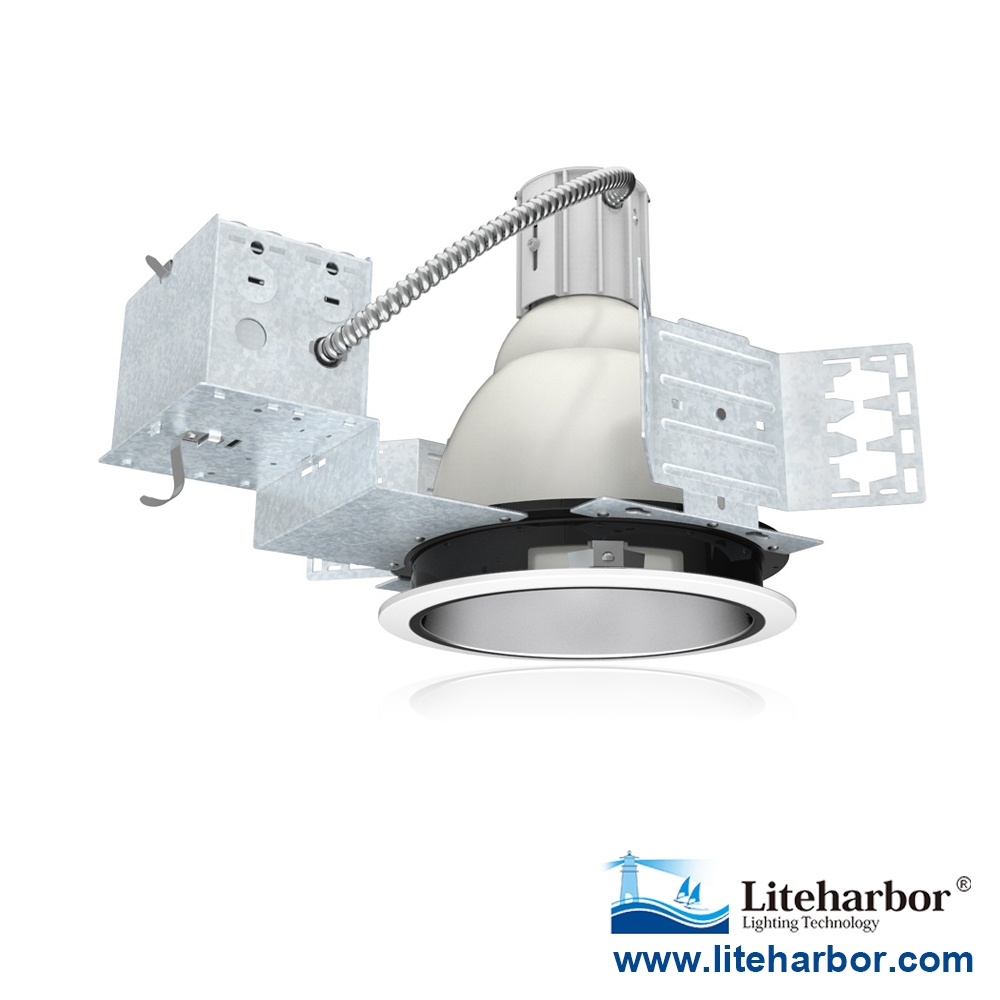

Mounting
Constructed from 16-gauge steel, die-formed construction for max heat dissipation and rust protection
Precision tooled springs secure trim to mounting frame for effortless and tool-less installation
Compatible with C-channel, flat bar wood joist bar hanger and EMT.
Fully assembled for ease of installation
Non-IC housing require a minimum clearance of 3" around from thermal insulation and 1/2" from combustible material from above the fixture
Junction Box
Pre-wired junction box provided with 1/2" and 3/4" knockouts
Provided with removable access plates
Knockouts equipped with pry out slots
All leads are #18AWG wire, the ground wire connected to the bottom and quick connectors are supplied on all leads
Through branch circuit wiring(4 in, 4 out)
Socket Cup
Adjusts vertically for optimum light performance
Die-cast fin construction for heat dissipation
Unitized optics guarantees proper trim to housing installation
Tool-less installation adjustability from either outside the housing or inside the housing
Reflector
High quality reflector with 1.2mm thickness available finishes and types in multiple architectural finishes and types.
Optional painted white flange is available
Single position optics eliminate possibility of specified lamp being installed in incorrect position
Thermal Protector
Meet ETL requirements
Standard thermal protection device guards against improper installation, over lamping and misuse of insulation material
External thermal device located on the junction box wrap
Socket
E26 medium base
Lamp & Socket
A19 100W Incandescent max 12W LED max
A21 150W Incandescent max 15W LED max
A23 200W Incandescent max 20W LED max
PAR30 75W Incandescent max 16W LED max
PAR38 150W Incandescent max 24W LED max
CRI>80%
PF>0.9
Color Temperature: 2800K-6500K
Listing
ETL listed for damp location W/Feed through
