6 Inch LED Commercial Downlight

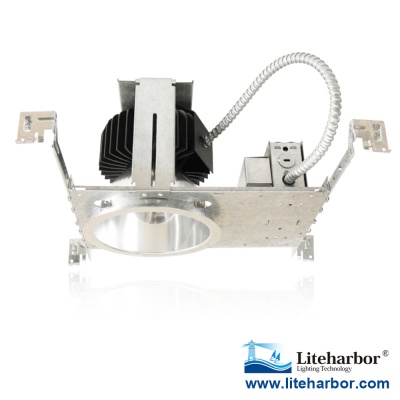

6 Inch LED Commercial Downlight

ITEM No.: AL6-VC
Input Volt : 120V/ 277V
Lamp : COB
CRI : >80%
Listing : cETLus

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

AL6-VC

Best Recessed Lighting 6 inch led commercial





Features

Uniquely Designed for New and Existing Construction

Idea for Places Where Edison Base Sockets Have Been Banned

Environment Friendly no Cd or Hg included

Good Heat Dissipation More Safe to Use than LED Bulbs

High CRI

50000 hours' life time

LED Light Engine is attached to the die-cast heat sink and is easily replaceable and upgradable

Energy Saving



Mounting

Constructed of 16-gauge steel

Frame includes bar hangers with nails for wood joist

Installed spring steel friction clips

Adjustable 14"-24" for precise placement

Bar hangers include T-bar notch for T-grid ceiling installations

Fully assembled for ease of installation

Must be kept at least 3" away from insulation



Junction Box

Pre-wired junction box provided with 1/2" and 3/4" knockouts

Provided with removable access plates

Knockouts equipped with pry out slots

All leads are #18AWG wire, the ground wire connected to the bottom and quick connectors are supplied on all leads

Through branch circuit wiring(4 in, 4 out)



Reflector

High quality reflector with 1.2mm thickness available in multiple architectural finishes and types

Gather light scattered by the LED chip and shape it into functional beams that minimize brightness and glare while eliminating lamp image

Transmittance>90%

Optional painted white flange is available



Durability

Die-cast system pulls heat from the LED chip allowing continued cool operation for years

LED output will be maintained at 70% if initial lumens at 50000 hours of operation



Thermal Protection

Standard thermal protection device guards against improper installation and misuse of insulation material



LED Light Engine & Electronic System

120V/277V 50/60Hz input

Less than 20% THD will be produced

Power Factor>90%

Thermally protected for additional safety

Driver is installed on the junction box cover easy accessible for service from the ceiling

Class 2 power supply

Over voltage, over current and short circuit protection: Auto recovery

Dims down to 10% with electronic low voltage (ELV) reverse phase control dimmers

CRI>80%

Color Temperature 2700K-6500K

Cree, Citizen, Epistar all are available



Wattage and Lumens for Choices



Input Power

Lumens

30W

2500

24W

1920

16W

1280
