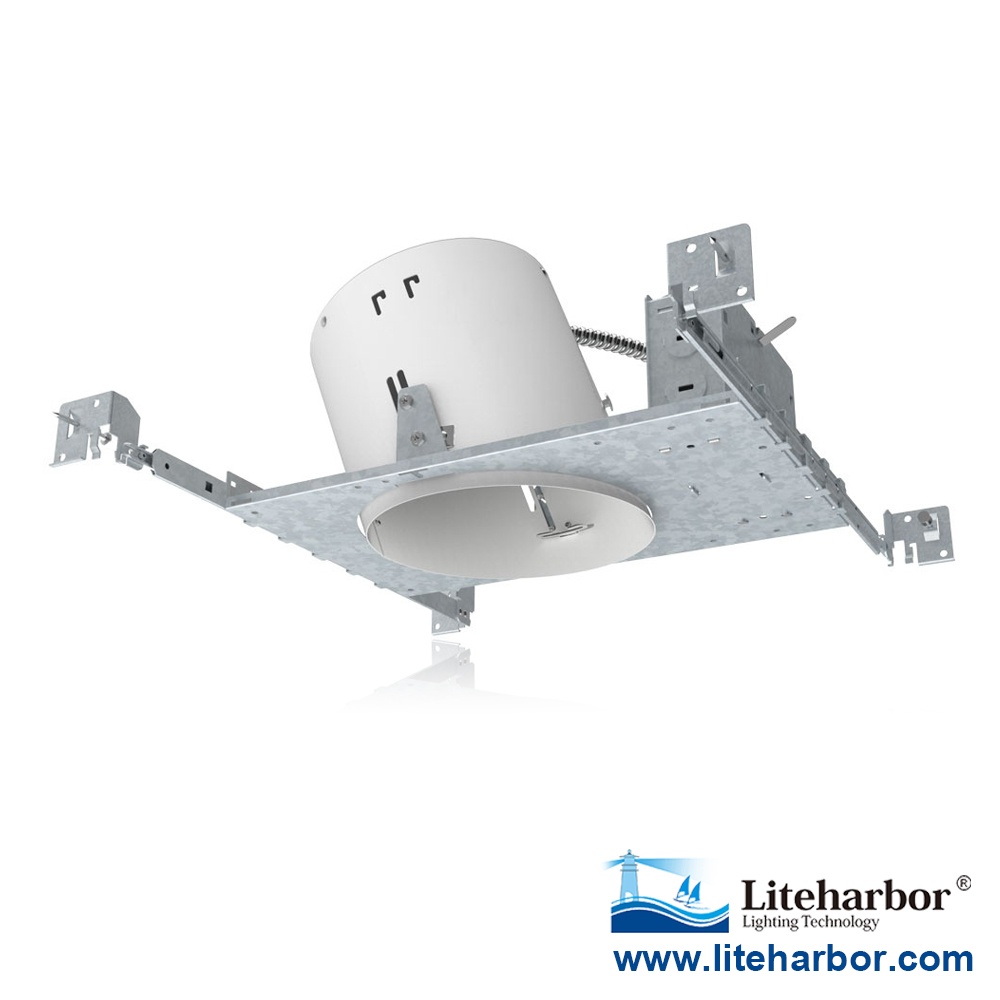

Housing
Die-formed aluminum for maximum heat dissipation and rust protection
Designed for New Construction installation and suitable for using in non-insulation covered ceilings
Housing can be installed in 1/2" to 1-3/8" thick ceilings.
Housing is Non-IC rated must be kept at least 3" away from insulation
Hanger Bar
Allow housing to be positioned and locked at nay point within a 24" joist span.
Can be shortened for 12" joists
Can be positioned on long or short axis of the housing
Contain integral nail
Hanger fit onto T-bar spline for quick alignment
J-BOX
ETL listed for through branch wiring
4 in-4 out J-box
Designed for straight through conduit runs
1/2" and 3/4" romex wiring knockouts
Pre-wired junction box provided with removable access plate
Knockouts equipped with pry out slots
All leads are #18AWG wire, ground wire is connected to the bottom, quick connectors are supplied on all leads
Socket Plate
Adjustable socket plate adjusts and locks in position without tools for multiple lamp and trim types
Loose socket housing without socket bracket also available
Thermal Protector
Integral thermal protector protects again improper lamping
Lamp & Socket
PAR30/PAR30LED/PAR38/PAR38 LED/R30/R40
150W max.(See trim for max. wattage)
E26 Medium Base
GU24 Socket also available
CRI>80%
PF>0.9
Color Temperature: 2700K-6500K
Listing
ETL listed for damp location W/Feed through
Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.
Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.
Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.
Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you. Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
