Description

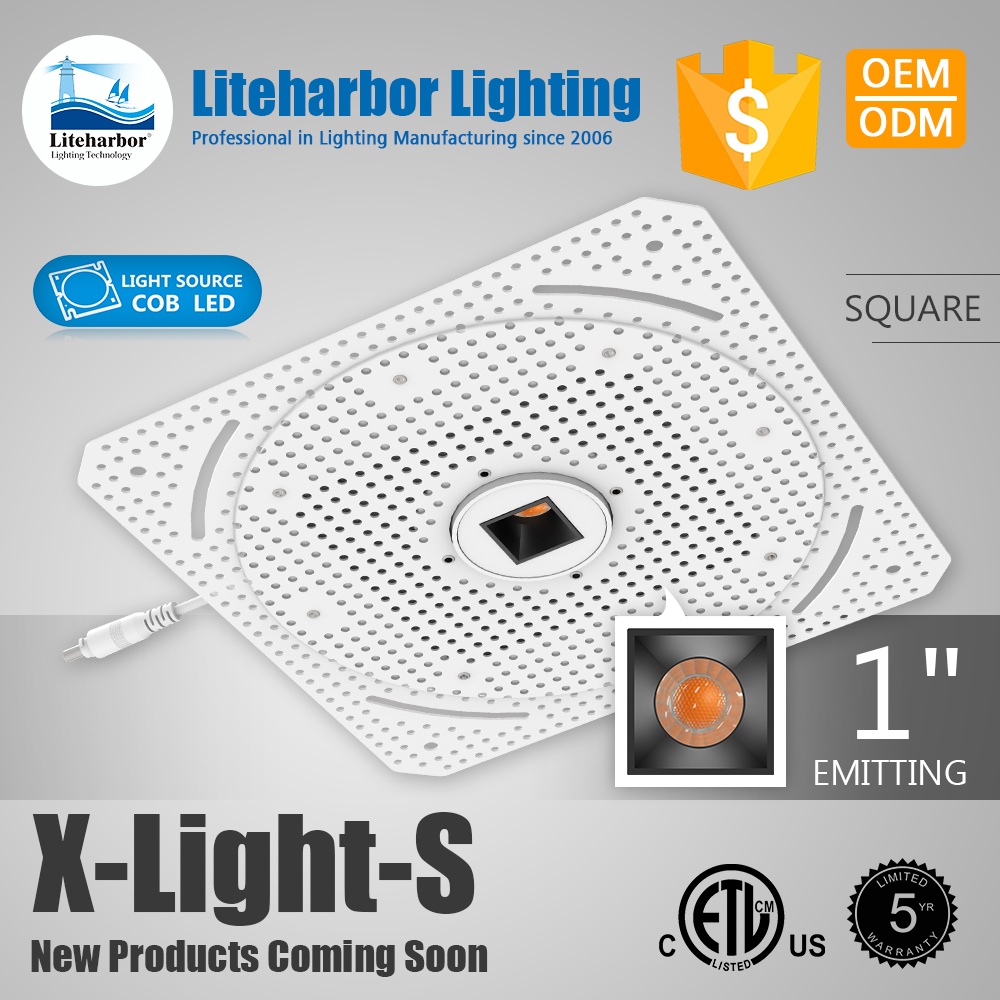

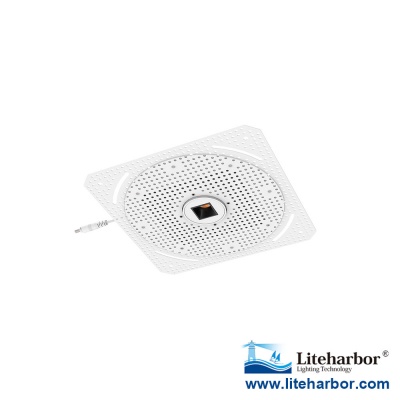

Xiangfei X-Light series, it provides a quick and convenient installation method, provides the solution of the edge of
architecture lighting, and makes a big breakthrough in the use and design. 1 inch (∅25mm) of the light-emitting surface the size to achieve the ultimate.
Features
- Xiangfei X-light series with square and circular light emission effect.
- Use big brand COB light source with high luminous efficiency (140lm/w) and long service life (100000 hours).
- Professional light distribution devices, no glare, perfect control light, spot even transition.
Lamp Body
- Ultra thin, the height of the whole lamp is only 23mm .
- Ultra small light emitting surface, only 1 inch (∅25mm).
- All-in-one die casting lamp body with unique appearance.
- Double-sided heat dissipation, can be made into IC type directly.
- The anti-pull device is hidden inside the lamp body.
Power Supply
- Wide voltage input 120-277VAC, 50/60 Hz, 0-10V dimming, constant voltage and constant current mode.
- The power has UL listed, can be applied to a variety of applications.
- Integrated power supply, easy to replace the power supply.
- The input voltage of each lamp is 42V/24V, the load termin can be used independently.
- Each luminaire is connected in parallel, one power supply can simultaneously control the use of five lamps.
Mounting And Maintenance
- Remodel and new construction optional.
- Wide range of applications, it can be installed in different thickness of ceiling, is the real universal type downlight.
- Cut-out dimensions 142*142mm .
- The subsequent decoration is also convenient and quick.
- There is no welding between the light source and the power supply, can replace the LED lamp beads according to the demand.
Power Supply
Wattage: 120W Max .
Input Voltage: 120-277V AC
Frequency: 50/60 Hz
Output Voltage: 42V/24V
Electric current: 3.4A Max .
Power Factor: >0.9
Dimming: TRIAC Dimmers 10%-100% (120V only)
Applications
Apply to residential, offices, hotels, shopping mall stores etc.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through. 5 Year Limited Warranty.
