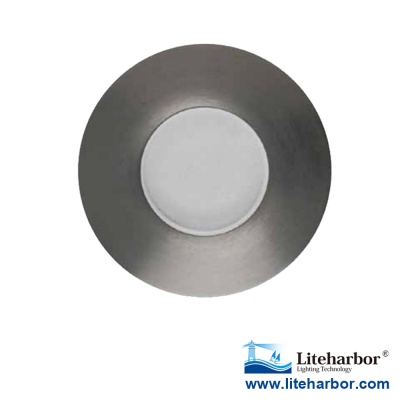

LED Indicator Light Mini Type 1W 6000K

LED Indicator Light Mini Type 1W 6000K

ITEM No.: IG-006
product series : in-ground light
lamp : LED
material : stainless steel
wattage : 1w
ODM & OEM : acceptable

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

LED Indicator Light Mini Type 1W 6000K

Description:

316 stainless steel or die-cast aluminum

Use with a remote transformer



Lamp

1W LED 2700K-6000K



Features

50000 hor life expectancy

0.9w energy consumption

Moisture resistant

Virtually no heat produced



Houisng

Constructed from injection-molded plastic with 94V2 flame rating. Double silicone o-ring seals led housing to aluminum mountin housing

Exernal wire strain relief included



Wiring

Tw0 26AWG high temperature insulated wires with external wire strain on back of led housin



ILED-DR-12V LED electronic driver

Order separately

Load: 25w max

Input: 90-277V 50/60Hz

Output at max. load 12VDC



Shielding

Stainless steel lens cover with brushed satin finish. Sand blasted tempered glass. Sealed with silicone gasket

Indoor or outdoor applications



Mounting

Includes 0.6" thick aluminum housing with three locking tabs for concrete mounting

  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File









    Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

    Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.



    Liteharbor offers a complete product line of Recessed DownlightLED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.



        Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment.     Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made.     Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.     Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
