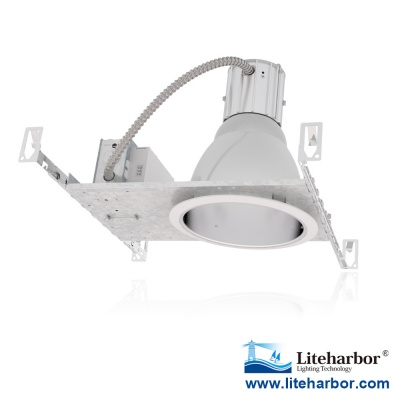

6 Inch Vertical Compact Fluorescent Commercial Recessed Housing

6 Inch Vertical Compact Fluorescent Commercial Recessed Housing

ITEM No.: AF6-VC
Input : 120V/ 277V
Size : 6 inch
Light source : CFL
Lamp : DTT/ TRT
Listing : cETLus

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

6 Inch Vertical Compact Fluorescent Commercial Recessed Housing



Mounting

Constructed from 16-gauge steel

Frame includes bar hangers with nails for wood joist

Installed spring steel friction clips

Adjustable 14"-25" for precise placement

Bar hangers include T-bar notch for T-grid ceiling installations

Fully assembled for ease of installation

Must be kept at least 3" away from insulation



Junction Box

Pre-wired junction box provided with 1/2" and 3/4" knockouts

Provided with removable access plates

Knockouts equipped with pry out slots

All leads are #18AWG wire, the ground wire connected to the bottom and quick connectors are supplied on all leads

Through branch circuit wiring (4 in, 4 out)



Reflector

High quality reflector with 1.2mm thickness available in multiple architectural finishes and types

Optional painted white flange is available

Single position optics eliminate possibility of specified lamp being installed in incorrect position



Ballast

Thermally protected

Electronic ballast provides full light output and rated lamp life

Flicker free and noise free operation and starting

End of lamp life protection is standard

Meet FCC EMT/FRI consumer limits

Attached to junction box cover so it may be serviced from below the ceiling no tools required



Socket

Universal G24 4-pin



Lamp

13/18/26/32/42W 4 pin

Universal G24 4-PIN

CRI>80%

PF>0.9

Color Temperature: 2700K-6500K
