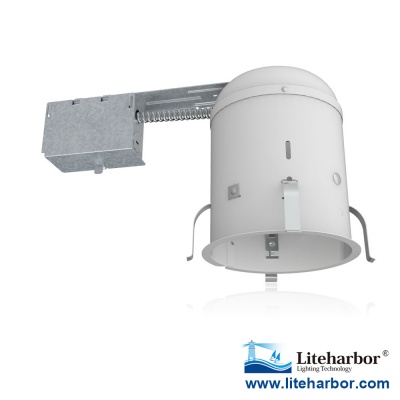

Housing
Die-formed aluminum for maximum heat dissipation and rust protection
Designed for remodel installations and suitable for using in non-insulation covered ceilings
Housing can be installed in 1/2" to 1-3/8" thick ceilings.
Housing is Non-IC rated must be kept at least 3" away from insulation
J-BOX
ETL listed for through branch wiring
4 in-4 out J-box
Designed for straight through conduit runs
1/2" and 3/4" romex wiring knockouts
Pre-wired junction box provided with removable access plate
Knockouts equipped with pry out slots
All leads are #18AWG wire, ground wire is connected to the bottom, quick connectors are supplied on all leads
Socket Plate
Can adjust and lock multiple lamp and trim types without tools
Ballast
Thermally protected
Electronic ballast provides full light output and rated lamp life
Flicker free and noise free operation and starting
End of lamp life protection is standard
Meet FCC EMT/FRI consumer limits
Attached to junction box cover so it may be serviced from below the ceiling no tools required
Lamp
18/26/32W 4-Pin DTT/TRT (See trim for max wattage)
Universal GX24 4-PIN
CRI>80%
PF>0.9
Color Temperature: 2700K-6500K
Listing
ETL listed for damp location W/Feed through
