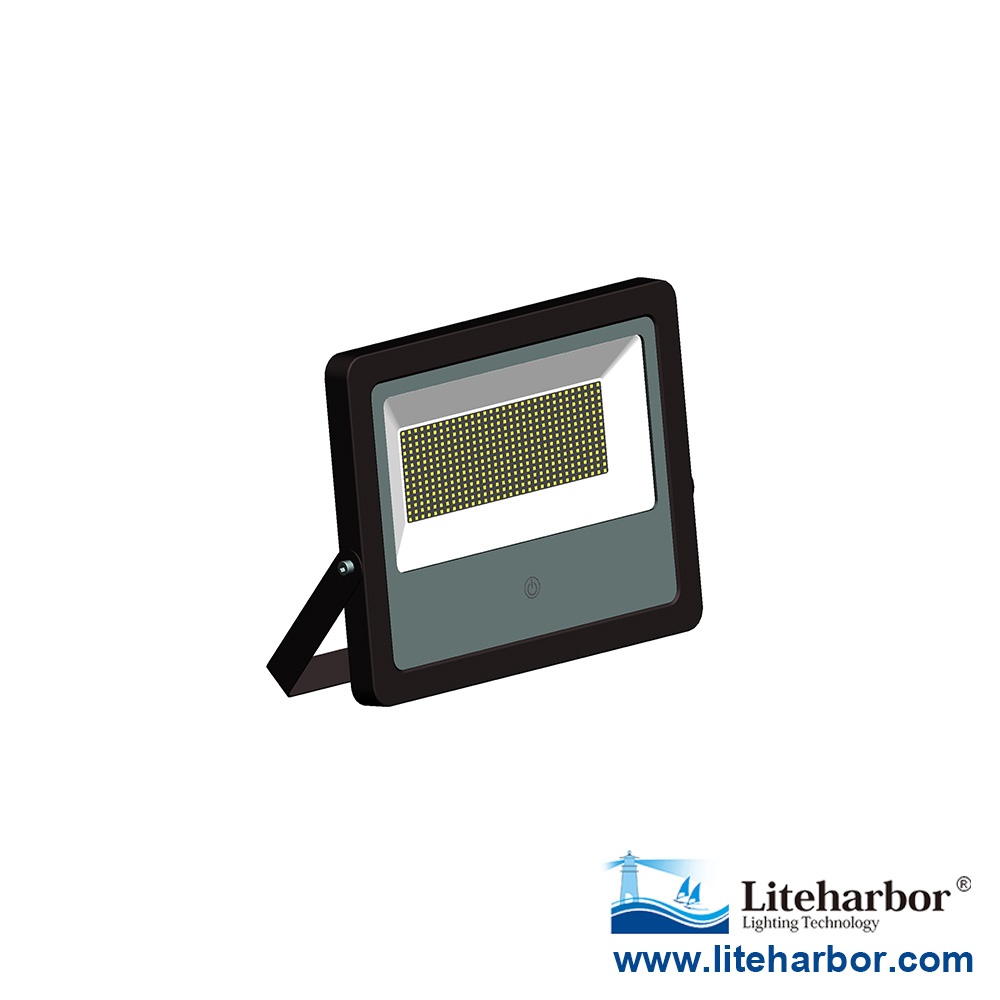

- Ultra-thin streamlined external light design and LED structure features organically combined, the appearance is simple.
- 4mm tempered clear glass, light transmittance up to 95%, reduce the light loss.
- High density die casting aluminum lamp body with reasonable heat dissipation design to ensure the service life of lamps.
- Adopt brand LED light source.
- Outdoor professional static outdoor plastic powder sprayed on surface, anti-UV, anti-corrosion and weather resistance is strong.
- Unique touch switch dimming function: 3CCT (3000K/4500K/6000K).
- Unique outdoor wall switch color temperature control function 3CCT (3000K/4500K/6000K)
- Lighting structure, electrical safety compliance with EN60598 GB7000 standard requirements.
- Electric shock protection: Class I
- IP rating: IP66
Applications
Suitable for factories, gymnasiums, wharfs, billboards, buildings, lawn, gardening design and other lighting and decorative lighting places.
Parameter
Item No.
DG5215
DG5215A
Input Voltage
AC 120V
AC 120V
Frequency Range
50-60Hz
50-60Hz
Light Source
224 PCS
448 PCS
Power Factor
>0.95
>0.95
Total Harmonic Distortion
<15%
<15%
System Power
150W
200W
Light Distribution Optional
120 degree
120 degree
Luminous Efficiency
>100lm/W
>100lm/W
Luminous Flux
15000lm
20000lm
Applicable Ambient Temperature
- 30 -- 45°C
Working Temperature
RH10％-90％
CCT
Warm White 2700K
Pure White 4500K
Cool White 6000K
Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.
Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.
Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you. Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
