Exit Light Led Battery Backup

ITEM No.: EXL002
product series : Exit Light Led
housing material : acrylic
Light source : LED
ODM & OEM : acceptable
Warranty : 2-year

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

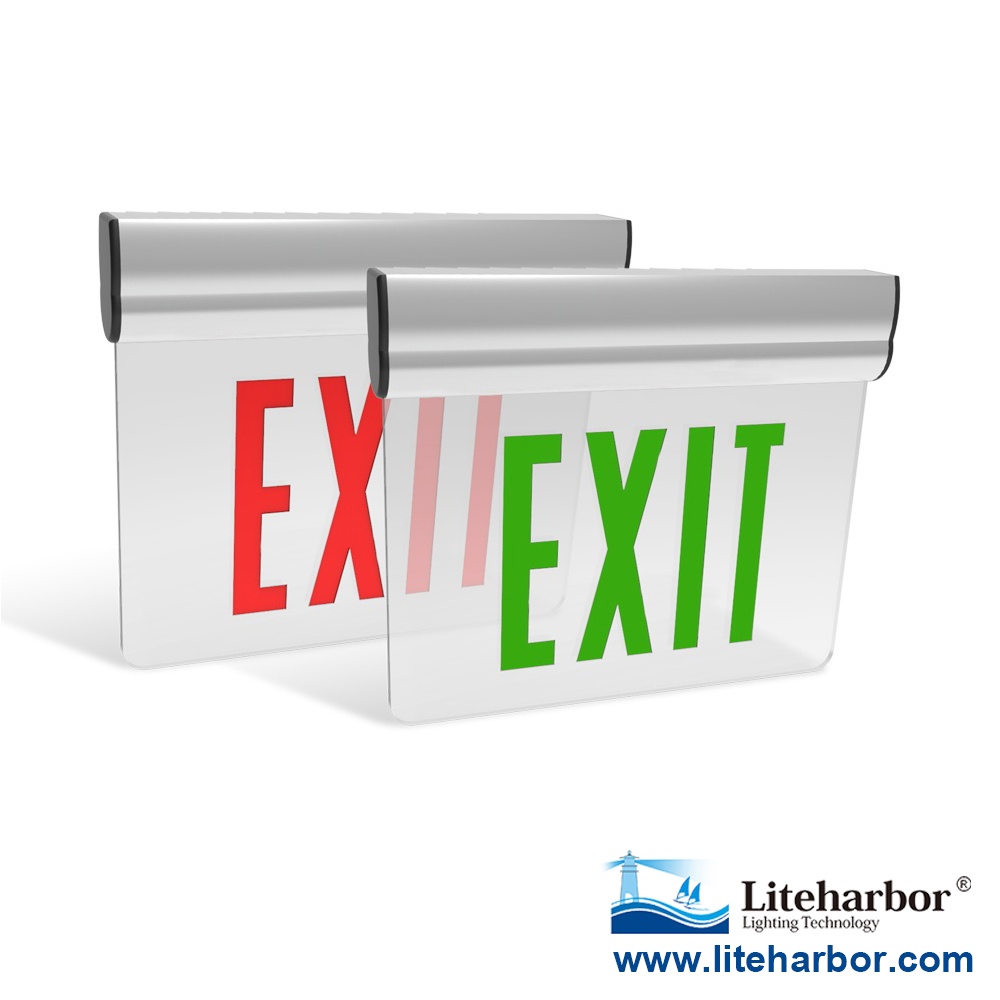

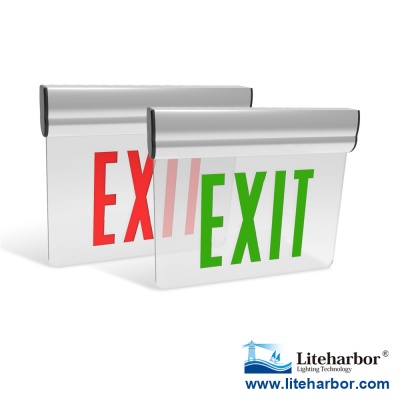

Exit Light Led Battery Backup

Fixture
Rigid aluminum housing
Etched, clear acrylic edge-lite replaceable panel (content can changed as per customer's design)
Letter 6" height with 3/4" stroke
Single
face configuration

Removable directional indicators
Removable front cover for easy installation and battery maintenance
90 Minute Minimum Emergency Mode
Damp Location Rated
UL Number: E472028



Electrical Technology
120/277VAC dual voltage operation
Momentary test switch and LED AC-On indicator light
Close Tolerance Electric Circuit, Short circuit proof



Light source
A soft and even glow radiates as illumination is provided through the use of the most cutting edge LED technology
LED lamps are operating in normal (AC input) and emergency (DC input) modes



Battery
AC only, No battery backup
Backup circuit provided for external emergency power source
24 hours recharge after 90 minutes discharge



Mounting
Universal mounting canopy, allowing for end, wall, or ceiling mounts.
Ceiling recessed mounting is also available



Packing
Inner Box Master Carton
Q’TY N.W. G.W. MEA’S
320x215x70mm 6 pcs 7.5 kgs 8.8 kgs 1.37cuft
