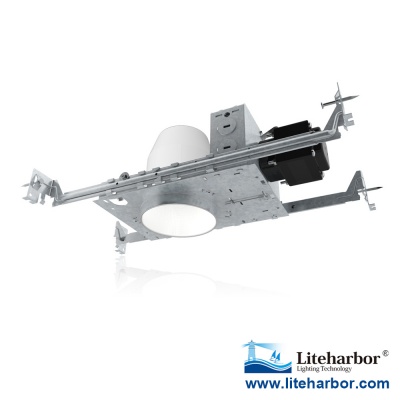

Housing
Die-formed aluminum for maximum heat dissipation and rust protection
Designed for New Construction installation and suitable for using in non-insulation covered ceilings
Housing can be installed in 1/2" to 1-3/8" thick ceilings
Housing is Non-IC rated must be kept at least 3" away from insulation
Hanger Bar
Allow housing to be positioned and locked at nay point within a 24" joist span
Can be shortened for 12" joists
Can be positioned on long or short axis of the housing
Contain integral nail
Hanger fit onto T-bar spline for quick alignment
Junction Box
ETL listed for through branch wiring
2 in-2 out or 4 in-4 out J-box for your better choices
Designed for straight through conduit runs
1/2" and 3/4" romex wiring knockouts
Transformer & LED Electronic Driver
Magnetic Transformer
Electronic Transformer
LED electronic driver for use with 12V MR-16 LED Lamps
Class 2 15W max Load driver
Full rage ELV dimming to 10%
Dimming in 120V only
Lamp
LED MR16 Lamp 10W max
MR16 37W max
GU5.3socket
CRI>80%
PF>0.9
Color Temperature: 2700K-6500K
Listing
ETL listed for damp location W/Feed through
